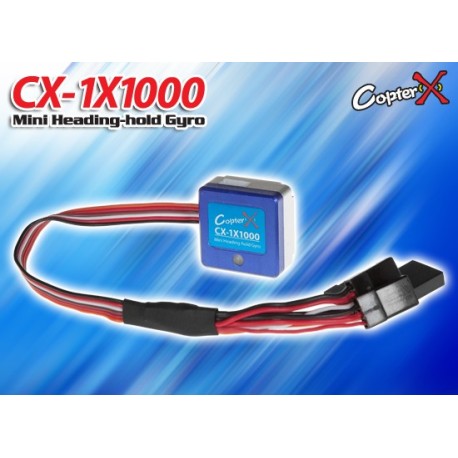

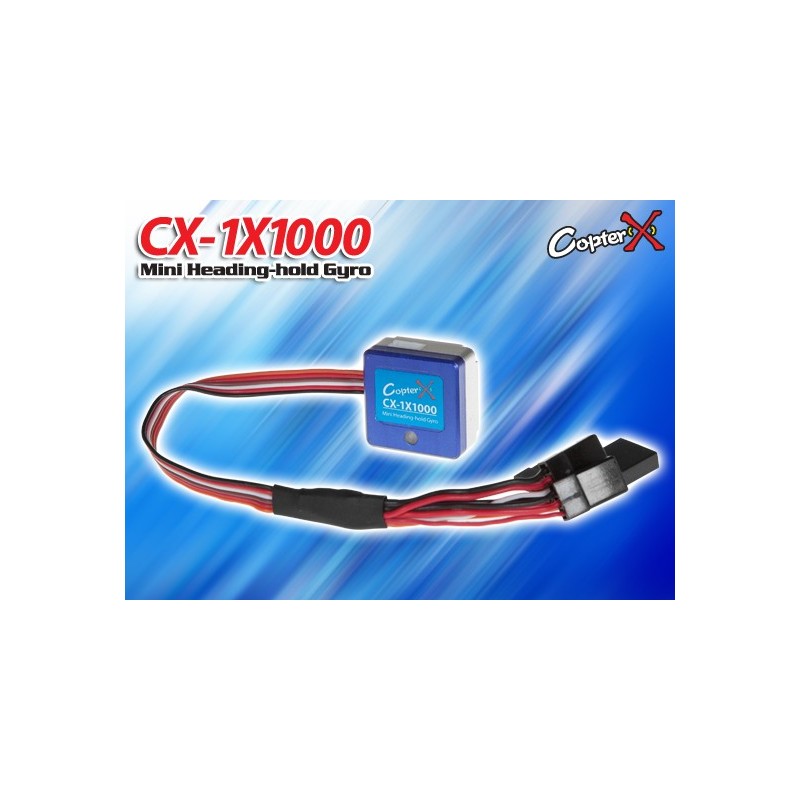

CX-1X1000 - Mini Heading-Hold Gyro System

CopterX (CX-1X1000) Mini Heading-Hold Gyro System

• • Features:

• Micro AVCS heading hold gyro
• Compact design to work most helicopter from 100-600 size
• Aluminum casing for accurate vibration free operation
• User selectable between AVCS or Normal mode
• Easily programmable without the aids of complex setup box
• Fully compatible from analog to narrow band digital servo (1.52ms analog, 1.52ms digital, 760us, 960us)
• Compatible with most popular PPM, PCM, 2.4G radio system
• Wide operation voltage from 3.5V to 10V DC

• • Specification:

• Weight: 11g (metal case, cables and plugs included)
• Operating Voltage: DC3.5V - 10V
• Operating Current Drain: 60ma
• Operating Temperature: -10°C - 50°C
• Maximal Angular Velocity: 800°/sec
• Servo Compatibility: 1.52ms analog servo, 1.52ms digital servo, 760us digital servo, 960us digital servo
• Radio Compatibility: PPM, PCM, 2.4G
• Option : Cable USB de programmation avec logiciel Français.
• Dimensions: 22.2*22.2*11m
